Architectural Plan

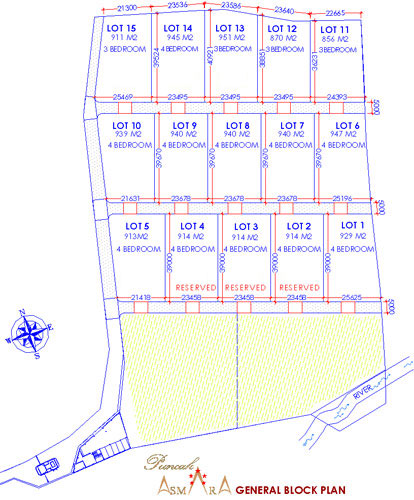

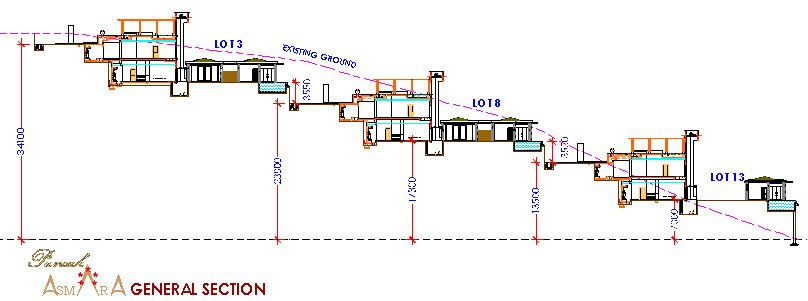

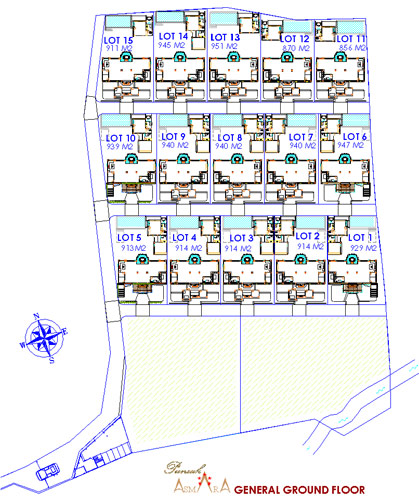

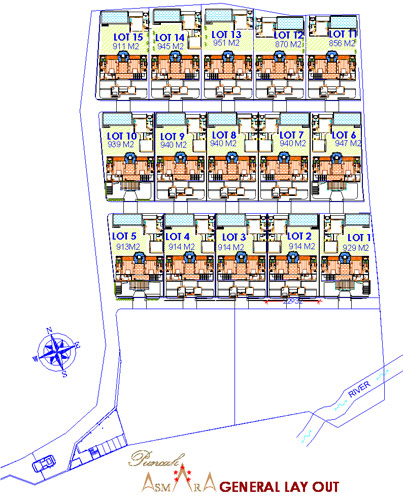

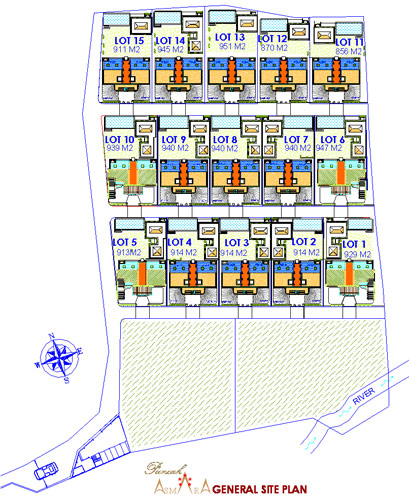

General Site Plan	General Block Plan	General Ground Floor	General Layout	General Section

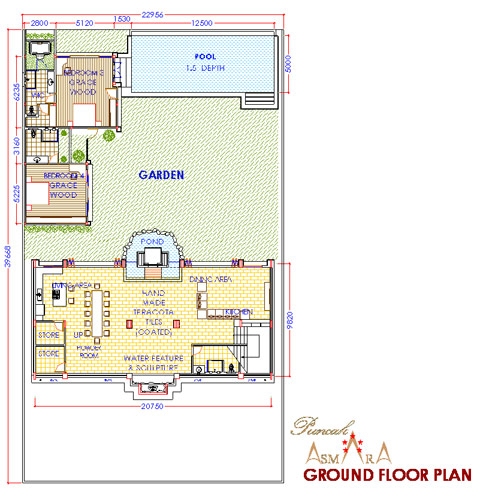

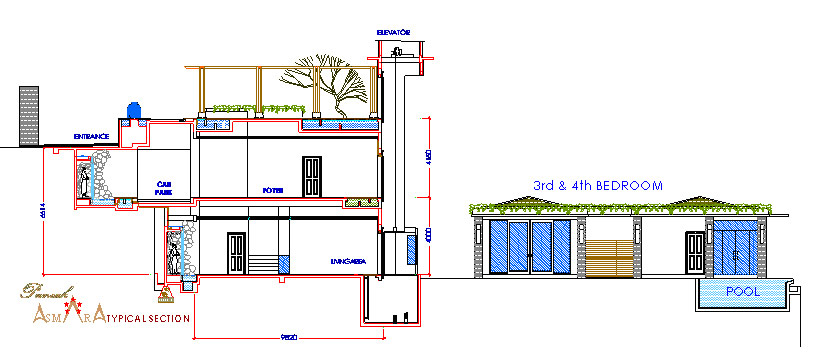

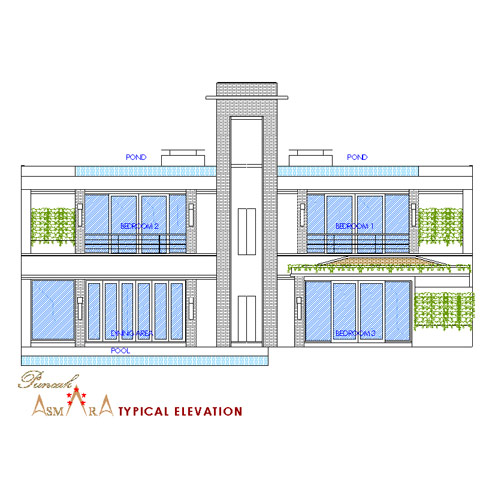

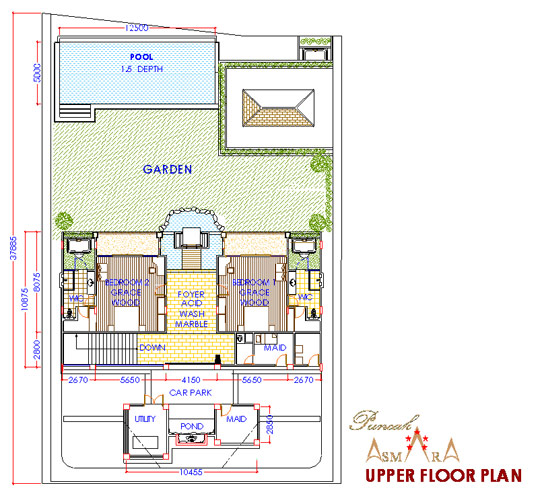

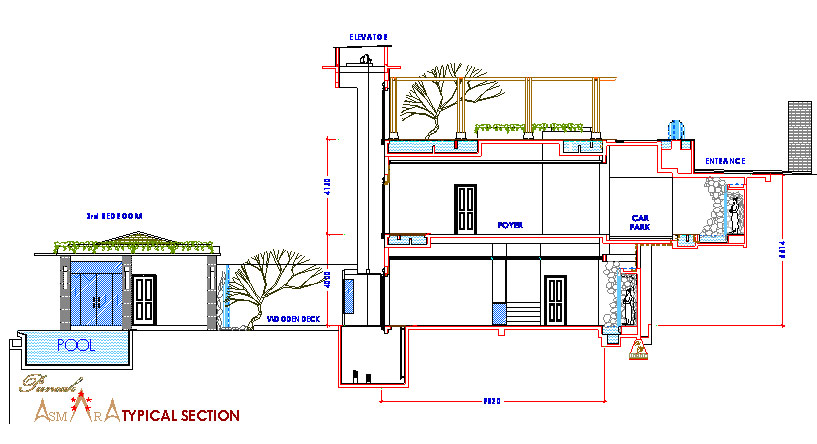

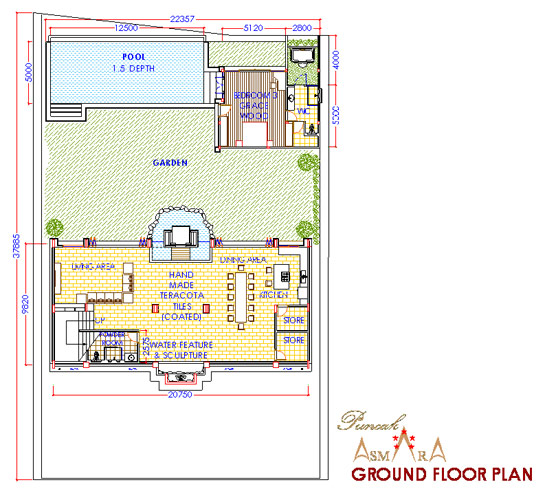

4BR Lobby Foyer Level	4BR Upper Level	4BR Ground Floor Plan	4BR Elevation	4BR Section

Specification
•	Foundation	:	River stone with reinforced steel & concrete
•	Building Structure	:	Reinforced steel & concrete
•	External boundary walls	:	Painted plastered solid brick walls
•	Internal courtyard walls	:	Painted plastered solid brick walls
•	Windows and doors	:	Solid tropical wood and glass with imported joinery

Living pavilion
•	Floor	:	Choice of local marble or high quality ceramic tiles
•	Air-conditioner	:	2 X 2 HP air-conditioner
•	Light	:	Spot & mood Lighting
•	Internal doors	:	Solid tropical wood
•	External facing doors	:	Choice of solid tropical wood or UPVC material

Bedrooms
•	Floor	:	Wood parquetry
•	Lighting	:	Spot and mood lightings
•	Air-conditioner	:	2 HP in 4 main bedrooms

Bathrooms
•	Floor	:	Choice of local marble or high quality ceramic tiles
•	Fittings	:	Grohe and Kohler in 4 main bedrooms
•	Wardrobe	:	Built-in fit to measure
•	Out door	:	Over-sized terrazzo bath tubs and heliconia garden

Kitchen
•	Floor	:	Ceramic tiles
•	Work bench	:	Imported black granite
•	Amenities	:	Twin door over-sized fridge
			5 point fire
			stove & rotisserie oven
			Built-in stainless sink with Grohe fitting

Pool
•	Infinity-edge
•	Tiles	:	Black lava stone (Candi stone)
•	Imported pool pump and filter
Option at extra cost
	1. Ulin wood deck (iron wood) by the pool
	2. Jacuzzi
	3. Bale bengong (gazebo)

Garden
•	Basic Landscaped tropical garden
•	Imported pond pumps and filter system

Maid, service, and laundry
•	Floor	:	Ceramic tiles
•	Amenities	:	Imported washing machine & separate dryer
			Toto brand fittings

Electricity
•	3-Phase 16.500 V (16.5 KVA)
